STANDARD PIPES

ASTM A53 PIPE

ASTM A53 pipe is intended for mechanical and pressure applications and is also acceptable for ordinary uses in steam, water, gas and air lines.

Sizes:

½” – 12” some limitations dependent upon grade. Sizes up to 26” OD are available on limited basis.

Standard Specification for Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and Seamless. This specification covers seamless and welded black and hot-dipped galvanized steel pipe.

ASTM A53 Pipe Types

The following types and grades of A53 pipe are covered within this specification:

  • Type F Pipe – Furnace-butt-welded, continuous welded Grade A
  • Type E Pipe – Electric-resistance-welded, Grades A and B
  • Type S Pipe – Seamless, Grades A and B

ASTM A53 application

  • Architecture: maximum pipeline under more groundwater extraction when towers, boilers, hot water conveyance and so on.
  • Machining, bearing sets, processing machinery and other accessories.
  • Electrical class: gas distribution, water power fluid conduit.
  • Anti-static tubes wind power plants.
casing tolerance

A500

A500 steel pipes can be subjected to most of the usual fabricating operations. Ductility is good. It bends well, flattens, cuts, punches, flares and flanges easily, and can be welded by the commonly-used techniques and practices.

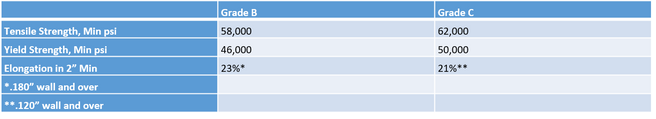

Mechnical Properties of A500

mercanical a500

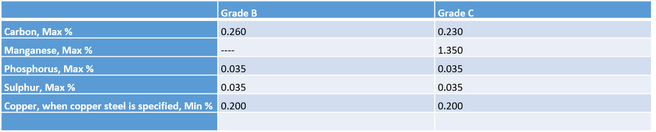

Chemical Composition of A500

chemical comp a500

The following types and grades of A53 pipe are covered within this specification:

    • Type F Pipe – Furnace-butt-welded, continuous welded Grade A
    • Type E Pipe – Electric-resistance-welded, Grades A and B
    • Type S Pipe – Seamless, Grades A and B

ASTM A500 application

  • Architecture: maximum pipeline under more groundwater extraction when towers, boilers, hot water conveyance and so on.
  • Machining, bearing sets, processing machinery and other accessories.
  • Electrical class: gas distribution, water power fluid conduit.
  • Anti-static tubes wind power plants.

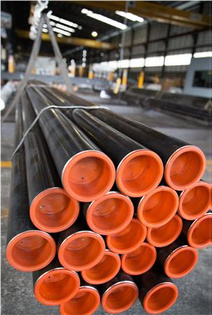

ers steel pine

ASTM A106 PIPE

ASTM A106 pipe is always produced by the seamless method and can be bent, coiled and flanged.

Mechnical Properties of ASTM A106

mercanical properties astm

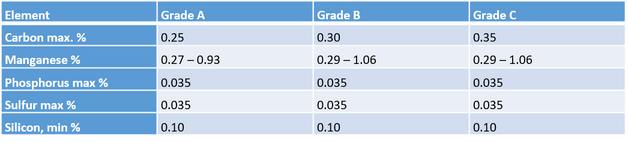

Chemical Composition of ASTM A106

chemical compo astm
